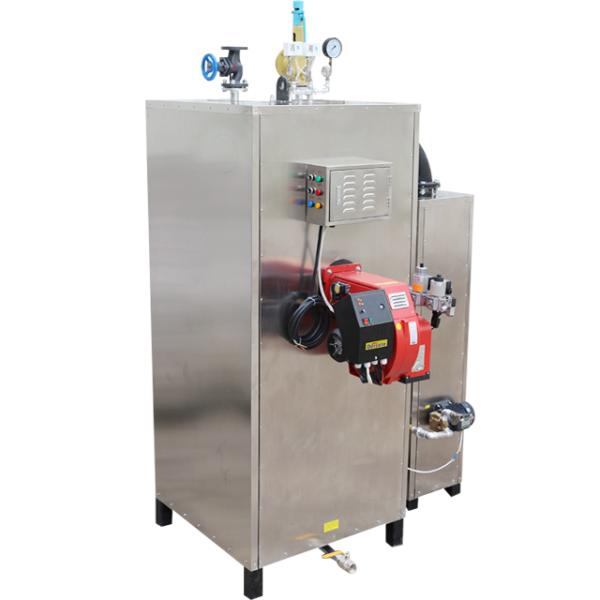

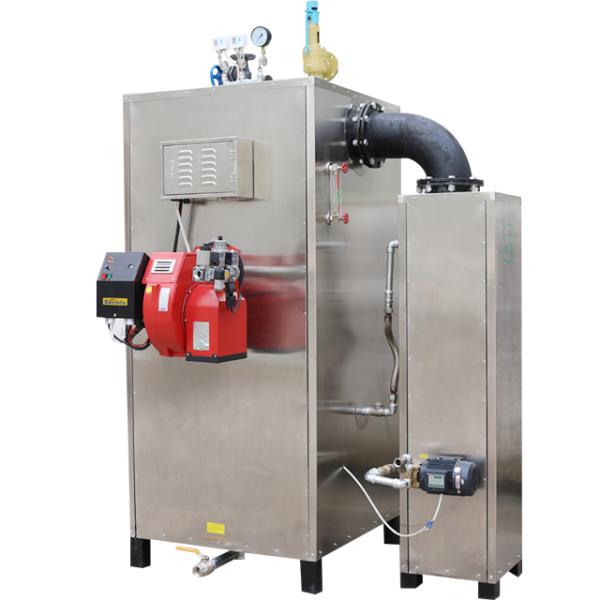

0.8MPa 0.5t Stainless Steel Oil Central Heating Boilers Steam Boiler For Brewery

Name: 08MPa 05t Stainless Steel Oil Central Heating Boilers Steam Boiler For Brewery
Brand: Enligy
Price: 3 USD

Place of Origin : Guangdong, China

Brand Name : Enligy

Price : $3,299.00/Sets 1-99 Sets

Structure : Fire Tube

Pressure : High Pressure

Dimension(L*W*H) : 800X760X2180 mm

Weight : 350KG

Application : Brewery

Steam Capacity : 100kg/h

Thermal efficiency : 95%

Steam temperature : 171

Working pressure : 0.7/0.8MPa(7/8Bar)

Voltage : 380V

Contact Now

0.8MPa 0.5t Stainless Steel Oil Central Heating Boilers Steam Boiler For Brewery

Diesel Boiler Square Steam Boiler Generator Oil 0.5t Stainless Steel Power Building Style Industrial Food Plate Sales

Comprehensive Introduction

The gas steam generator produces pure steam by firing gas (including natural gas,liquefied gas, LPG, propane).The main components are gas burner, water tank, water-feeding pump, controlling system, furnace, pressure controller, pressure gauge, safety valve, sensor of water level. Comparing to traditonal steam boiler(coal, wood,pellet,biomass fired), gas steam boiler is more eco-friendly and efficent, without men on duty

The gas steam boiler is widely used in food cooking, clothes flat ironing, industrial cleaning, equipment cleaning, sauna room, sterilization, central heating etc.

Our advantages

1.High energy-saving efficiency

The gas steam generator adopts high-quality burner, designed with vertical 2 return-trip structure, the burning level is higher with over 90% thermal efficiency .

2. High steam capacity

The gas powered steam generator can output steam in 10 minutes and evaporates 300kg/h.

3. Easy to operate

The gas powered steam generator with steam capacity 300kg/h are smart fully automatic operated with accurate computerized circuit board.All functions are dispalyed on the control panel, the working process like steam temperature and pressure adjustable and controllable.

4. Highly safe

Safer than ever with 6 protection systems: pressure regulator system, Overpressure automatic protection, water lack protection, dry-fire protection, anti-explosion system.
5.With national patent certificate
The gas steam boiler is patented product with China patent certificate, guaranting the quality and cost performance, always environment-friendly with few noise and no smog.

Parameters

0.8MPa 0.5t Stainless Steel Oil Central Heating Boilers Steam Boiler For Brewery

Evaporation	100 KG/H
Steam pressure	0.7 Mpa
Designed fuel	diesel, gas, liquefied gas
Steam temperature	170 Degree celsius
Gas consumption	8.5m3/h(natural gas) 7 m3/h(liquefied gas) 7KG/h(diesel)
Voltage	380 V
Water tank volume	49L
Water pressure	1.05 Mpa
Waste outlet diameter	DN40
Steam outlet diameter	DN20
Smoke outlet diameter	159mm
Weight	350 KG
Dimension	8007602180 mm

Detailed Images

Advanced conponents

Germany burner

Saving fuel consumption 30% off

Easy-operate panel

Pressure controller and gauge

Electric circuit board

Pressure gauge

Safety valve

Certifications

Packing&Shipping

The steam generator product will be packed with wood material to make the delivery safe, freight way by air or by sea.

After Sales Service

After sales service

1.During the 1 year warranty time, the steam generator could be renewed if suffers bugs not by man-made intentional way. You can enjoy free maintenance service from us.

2. out of the 1 year warranty time, the steam generator maintenance service will be charged.

Company Introduction

Dongguan Zhengqi'an technology company is a famous manufacturer that produce electrical automatic steam generator, steam boiler ,steam cleaning machine , smart steam ironing machine.

Established for 10 years , we owned marvelous reputation in the steam generator industry. Our clients are around the world, from Ameria continent to Europe countries.For longtime successful cooperation, our clients esteem us with high compliment.

Dongguan Zhengqi'an technology company keeps high quality rigorously all the time. Every procedure of the pruct is under strict inspection and advanced equipment. So our steam generator gained leading edge and great reputation for long time.

Welcom to visit our factory ! We are honored to cooperate with you all the time .
